FAROAD SMT Equipment

Our SMT Equipment

Multi-Functional
cpm-ii

High-Speed
cpm-iii

Lens-Mounter
cpm-ii-t

——You Need To Know The Advantages Of Our Pick And Place Machine——

Multi-Functional
cpm-ii

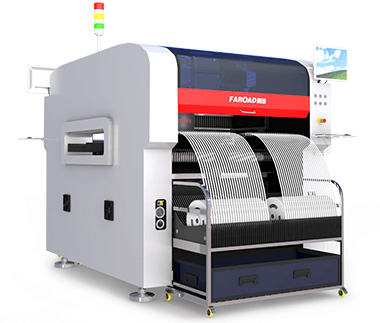

Faroad CPM-II Multi-functional

CPM-II is a flagship product developed by Faroad Company, which utilizes the latest generation of  suction nozzles and high-speed motors as well as the highest-performance software tools. Using CPM-II mounter with a long distance can maximize productivity. Equipped with a professional technical team, it can solve your production concerns in up to one hour, while providing the lowest placement cost for any environment or product combination.

High-Speed
cpm-iii

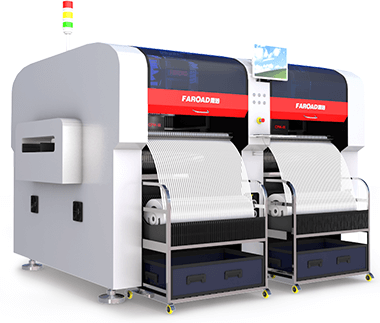

Faroad CPM-III High speed

CPM-III is a high-end product developed by Faroad Company, which utilizes the latest  generation of suction nozzles and high-speed motors as well as the highest-performance software tools.
The production efficiency of CPM-III chip mounter with long distance is 2 times higher than that of CPM-II products. At the same time, it is equipped with engineers and technical teams, which can solve your production concerns in 30 minutes at the earliest. At the same time, it provides the lowest placement cost for any environment or product combination and achieves the product line with the highest productivity.

Lens-Mounter
cpm-ii-t

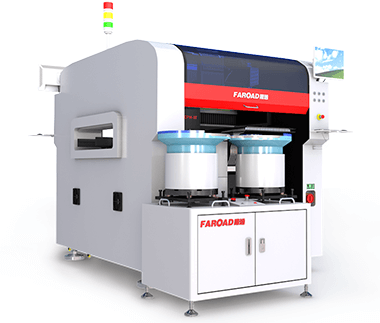

Faroad CPM-IIT lens

CPM-II T is a professional lens mounter developed by Faroad Company, which uses the latest generation of suction nozzles and high-speed motors as well as the highest-performance software tools. The CPM-IIT chip mounter with a long distance is used to mount various lens chips commonly used in the market. Our products have an 8-channel feeding system, and the automatic feeding of motors is more accurate to ensure the feeding and to solve the discarding of components caused by unstable feeding. We will provide the lowest placement cost for any environment or product combination.

——You Need To Know The Advantages Of Our Pick And Place Machine——

Faroad CPM-II Multi-functional

CPM-II is a flagship product developed by Faroad Company, which utilizes the latest generation of  suction nozzles and high-speed motors as well as the highest-performance software tools. Using CPM-II mounter with a long distance can maximize productivity. Equipped with a professional technical team, it can solve your production concerns in up to one hour, while providing the lowest placement cost for any environment or product combination.

Faroad CPM-III High speed

CPM-III is a high-end product developed by Faroad Company, which utilizes the latest  generation of suction nozzles and high-speed motors as well as the highest-performance software tools.
The production efficiency of CPM-III chip mounter with long distance is 2 times higher than that of CPM-II products. At the same time, it is equipped with engineers and technical teams, which can solve your production concerns in 30 minutes at the earliest. At the same time, it provides the lowest placement cost for any environment or product combination and achieves the product line with the highest productivity.

Faroad CPM-IIT lens

CPM-II T is a professional lens mounter developed by Faroad Company, which uses the latest generation of suction nozzles and high-speed motors as well as the highest-performance software tools. The CPM-IIT chip mounter with a long distance is used to mount various lens chips commonly used in the market. Our products have an 8-channel feeding system, and the automatic feeding of motors is more accurate to ensure the feeding and to solve the discarding of components caused by unstable feeding. We will provide the lowest placement cost for any environment or product combination.

Our chip mounter products utilize high-end basic technology and easy operating software to provide cost-effective, value-driven productivity in a low-profit environment. This kind of versatility, equipped with excellent operating software and minimum product maintenance, provides professional after-sales service team and strong online technical support, Faroad adopts highly accurate product production quality and can achieve excellent output. He can stand out in SMT production lines, adapt to various production environments, and produce excellent consistent output in SMT production lines. Our mounter has all the capabilities to meet today’s challenges and provides growth paths for the future. In addition, while continuously upgrading and diversifying our products, we can meet all the chip mounting requirements in the current market. We have a high-precision component identification system, zero error in mounting components, and a mounting speed of up to 50000CPH for eight multi-functional suction nozzle modules. At the same time, we have specially designed a suction nozzle exchange station for suction nozzles, which is fully automated and safer for mounting different chips without manual replacement of suction nozzles. We can provide the whole line plan of SMT products and SMT peripheral equipment. We strive to achieve the lowest budget and the highest production efficiency based on customer demand.

Our chip mounter products utilize high-end basic technology and easy operating software to provide cost-effective, value-driven productivity in a low-profit environment. This kind of versatility, equipped with excellent operating software and minimum product maintenance, provides professional after-sales service team and strong online technical support, Faroad adopts highly accurate product production quality and can achieve excellent output.

He can stand out in SMT production lines, adapt to various production environments, and produce excellent consistent output in SMT production lines. Our mounter has all the capabilities to meet today’s challenges and provides growth paths for the future. In addition, while continuously upgrading and diversifying our products, we can meet all the chip mounting requirements in the current market.

We have a high-precision component identification system, zero error in mounting components, and a mounting speed of up to 50000CPH for eight multi-functional suction nozzle modules. At the same time, we have specially designed a suction nozzle exchange station for suction nozzles, which is fully automated and safer for mounting different chips without manual replacement of suction nozzles. We can provide the whole line plan of SMT products and SMT peripheral equipment. We strive to achieve the lowest budget and the highest production efficiency based on customer demand.

Reflow Oven
ly-6600II

Reflow Oven
ly-8800II

Reflow Oven
ly-1000II

——You Need To Know The Advantages Of Our Reflow Soldering——

Reflow Oven
ly-6600II

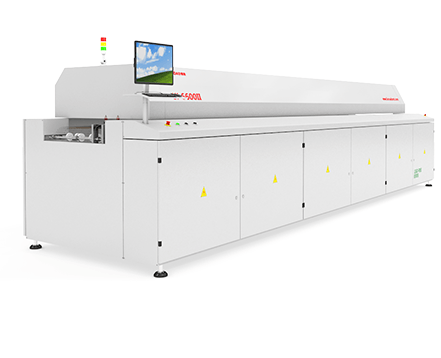

Faroad LY-6600II six-zones

LY-6600II is a six-temperature reflow soldering product developed by Faroad company, which uses high-quality heating pipes.
high-speed air cooling+water cooling motors and the highest-performance software tools.

Reflow Oven
ly-8800II

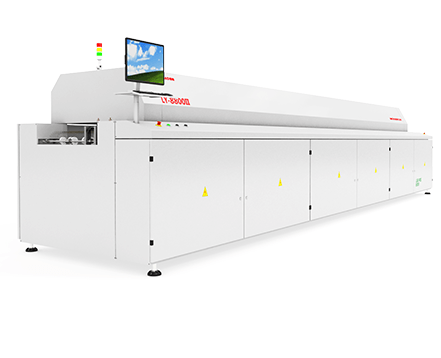

Faroad LY-8800II Eight-zones

LY-8800II is a reflow soldering product developed and manufactured by Faroad Company in six temperature zones. It is updated based on the six temperature zones and has perfect improvement on weldability. At the same time, it is controlled by PC+PLC with a temperature control accuracy of 1℃ to ensure stable operation of the equipment. Analysis of embedded welding defects, one-touch operation of embedded equipment maintenance.

Reflow Oven
ly-1000II

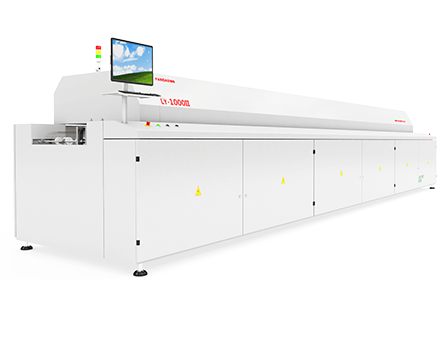

Faroad LY-1000II Ten-zones

LY-1000II is a high-end 10-temperature reflow soldering developed by Faroad Company. Its efficiency in soldering components and production lines has been greatly improved. Compared with the reflow soldering products in 6-temperature zone and 8-temperature zone, the reflow soldering products are improved in performance and more humanized in operation. We achieve the highest performance at the lowest cost.

——You Need To Know The Advantages Of Our Reflow Soldering——

Faroad LY-6600II six-zones

LY-6600II is a six-temperature reflow soldering product developed by Faroad company, which uses high-quality heating pipes.
high-speed air cooling+water cooling motors and the highest-performance software tools.

Faroad LY-8800II Eight-zones

LY-8800II is a reflow soldering product developed and manufactured by Faroad Company in six temperature zones. It is updated based on the six temperature zones and has perfect improvement on weldability. At the same time, it is controlled by PC+PLC with a temperature control accuracy of 1℃ to ensure stable operation of the equipment. Analysis of embedded welding defects, one-touch operation of embedded equipment maintenance.

Faroad LY-1000II Ten-zones

LY-1000II is a high-end 10-temperature reflow soldering developed by Faroad Company. Its efficiency in soldering components and production lines has been greatly improved. Compared with the reflow soldering products in 6-temperature zone and 8-temperature zone, the reflow soldering products are improved in performance and more humanized in operation. We achieve the highest performance at the lowest cost.

Use our SMT reflow oven to achieve the highest performance at the lowest cost, Faroad is one of China’s leading SMT manufacturers. It provides reflow ovens with reasonable prices for different customers. For example, HUAWEI, one of the world’s top 500 companies, is our important partner.

Whether you are an engineer, amateur, enterprise or start-up, our solder reflow oven will optimize your assembly line from all angles. Generally, compared with manual SMD soldering, reflow soldering furnace does soldering much faster, which is why Faroad will help you expand your business and invest in your budget intelligently without damaging PCB, reducing the defective rate of products and increasing the yield. Since our reflow oven can be configured with up to ten temperature zones, high density PCB with multiple surface mount units is no longer a problem. You may want to choose “oven” instead of professional reflow soldering, but you no longer need to make compromises. Using Faroad reflow soldering, you will make your product line easier, and you will save more resources and time, thus the product line output is increasing.

Use our SMT reflow oven to achieve the highest performance at the lowest cost, Faroad is one of China’s leading SMT manufacturers. It provides reflow ovens with reasonable prices for different customers. For example, HUAWEI, one of the world’s top 500 companies, is our important partner.

Whether you are an engineer, amateur, enterprise or start-up, our solder reflow oven will optimize your assembly line from all angles. Generally, compared with manual SMD soldering, reflow soldering furnace does soldering much faster, which is why Faroad will help you expand your business and invest in your budget intelligently without damaging PCB, reducing the defective rate of products and increasing the yield. Since our reflow oven can be configured with up to ten temperature zones, high density PCB with multiple surface mount units is no longer a problem. You may want to choose “oven” instead of professional reflow soldering, but you no longer need to make compromises. Using Faroad reflow soldering, you will make your product line easier, and you will save more resources and time, thus the product line output is increasing.

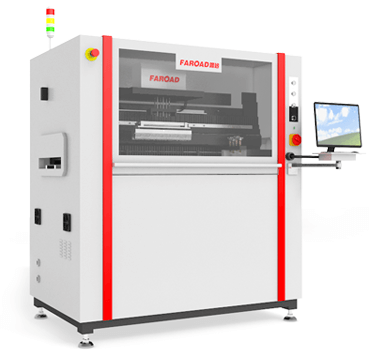

Full-auto Screen Printer
CP18-M

——You Need To Know The Advantages Of Our Screen Printer——

High-precision SMT screen printers from FAROAD can handle PCBs up to 850 x 800 mm. Larger custom sizes are also available for this type of printer. FAROAD full-auto solder paste printer is with brilliant printinng performance and excellent cost-effiency. Though cooperating with our reliable parts suppliers, combined with our experienced assembly workers, FAROAD is confident of the quality of our printer.
Automatic printing machine: high precision of printing, good effect of solder paste stripping, stable printing process, suitable for the printing of closely spaced elements, the disadvantage is high maintenance cost, high requirement for operators’ knowledge level.
Fully automatic standard solder paste printing machine Basic process Shared by automatic standard solder paste printing press and semi-automatic standard solder paste printing press. Theoretical single plate printing cycle time of automatic standard solder paste printing press: 10S+ printing travel time.
Working mode: use metal scraper, steel mesh, PCB fixed by vacuum suction. Through the printing press camera, the base plate and the steel mesh’s optical registration point (MARK point) are aligned, and then the fine adjustment of the base plate and the steel mesh is made, so that the pattern of the base plate’s welding pad and the pattern of the steel mesh’s opening completely coincide.

1. Substrate processing function
Substrate processing function including PCB substrate transport, positioning, support. Transport refers to the moving in and out of PCB and the small movement back and forth before PCB is fixed. The positioning of the substrate can be divided into hole positioning, edge positioning and optical positioning to ensure the accuracy of the position. The support of the substrate is to keep the printed PCB on a flat surface, so that the PCB substrate will not be distorted during the printing process. There are three ways of supporting PIN, supporting block and supporting board. PIN support is more flexible and less limited, which is commonly used at present. Support block, support plate more limitations, generally used in single – sided process.
2. Alignment of substrate and steel mesh
The alignment of the substrate and the steel mesh includes the mechanical center and the optical center. The optical center is the correction of the mechanical center, which improves the printing accuracy.
3. Control function of scraper
The control function of printing press for scraper includes pressure, speed, depth, distance, scraper Angle, scraper lift, etc.
4. Control function of steel mesh
The control of the printing press includes the adjustment of the flatness of the steel mesh, the control of the spacing between the steel mesh and the substrate, the control of the separation mode, and the automatic cleaning setting of the steel mesh

Full-auto Screen Printer
CP18-M

——You Need To Know The Advantages Of Our Screen Printer——

High-precision SMT screen printers from FAROAD can handle PCBs up to 850 x 800 mm. Larger custom sizes are also available for this type of printer. FAROAD full-auto solder paste printer is with brilliant printinng performance and excellent cost-effiency. Though cooperating with our reliable parts suppliers, combined with our experienced assembly workers, FAROAD is confident of the quality of our printer.
Automatic printing machine: high precision of printing, good effect of solder paste stripping, stable printing process, suitable for the printing of closely spaced elements, the disadvantage is high maintenance cost, high requirement for operators’ knowledge level.
Fully automatic standard solder paste printing machine Basic process Shared by automatic standard solder paste printing press and semi-automatic standard solder paste printing press. Theoretical single plate printing cycle time of automatic standard solder paste printing press: 10S+ printing travel time.
Working mode: use metal scraper, steel mesh, PCB fixed by vacuum suction. Through the printing press camera, the base plate and the steel mesh’s optical registration point (MARK point) are aligned, and then the fine adjustment of the base plate and the steel mesh is made, so that the pattern of the base plate’s welding pad and the pattern of the steel mesh’s opening completely coincide.

1. Substrate processing function
Substrate processing function including PCB substrate transport, positioning, support. Transport refers to the moving in and out of PCB and the small movement back and forth before PCB is fixed. The positioning of the substrate can be divided into hole positioning, edge positioning and optical positioning to ensure the accuracy of the position. The support of the substrate is to keep the printed PCB on a flat surface, so that the PCB substrate will not be distorted during the printing process. There are three ways of supporting PIN, supporting block and supporting board. PIN support is more flexible and less limited, which is commonly used at present. Support block, support plate more limitations, generally used in single – sided process.
2. Alignment of substrate and steel mesh
The alignment of the substrate and the steel mesh includes the mechanical center and the optical center. The optical center is the correction of the mechanical center, which improves the printing accuracy.
3. Control function of scraper
The control function of printing press for scraper includes pressure, speed, depth, distance, scraper Angle, scraper lift, etc.
4. Control function of steel mesh
The control of the printing press includes the adjustment of the flatness of the steel mesh, the control of the spacing between the steel mesh and the substrate, the control of the separation mode, and the automatic cleaning setting of the steel mesh

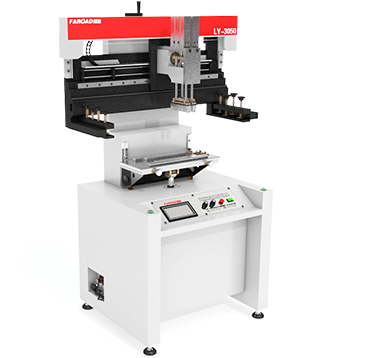

Semi-auto Screen Printer
ly-3050

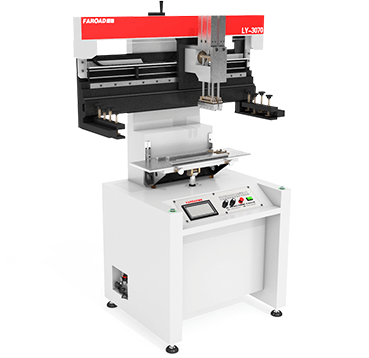

Semi-auto Screen Printer
ly-3070

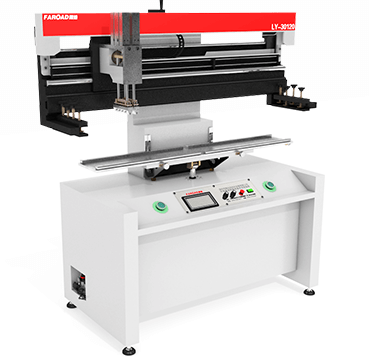

Semi-auto Screen Printer
ly-30120

The SMT production line uses semi-automatic PCB printing equipment. We have not only a small mold printer, but also an extended version, even a 120CM long PCB. We can also customize it for you according to your needs.
Our printing machine can provide you with higher production line. And its compatibility and docking are common in the market. If we use our series of whole-line products, we will have better promotion and docking. Our whole-line products will be more flexible. No matter which product you choose, we believe that the production line will have a certain improvement, including the product qualification rate.

The following are 9 characteristics of our printing press:

1. Precision guide rail and imported motor are used to drive the tool holder for conversion and printing with high precision.
2. The printing scraper can be rotated 45 degrees and fixed, which is convenient for cleaning and replacing the printing template and scraper.
3. The block can be adjusted before and after the blade to select the appropriate printing position.
4. Combined with the fixed groove printing press plate and PIN, it is convenient to install and adjust, suitable for single-sided and double-sided printing.
5.School Edition moves the steel screen in combination with printing (PCB), x, y, z. Easy fine tuning.
6. One-way, two-way and multiple printing modes can be set.
7. With automatic counting function, it is convenient to generate output statistics.
8. Adjustable blade angle, steel blade and rubber scraper are applicable.
9. The touch screen has a screen protection function, and the time can be adjusted to protect the service life of the touch screen.

Semi-auto Screen Printer
ly-3050

Semi-auto Screen Printer
ly-3070

Semi-auto Screen Printer
ly-30120

The SMT production line uses semi-automatic PCB printing equipment. We have not only a small mold printer, but also an extended version, even a 120CM long PCB. We can also customize it for you according to your needs.
Our printing machine can provide you with higher production line. And its compatibility and docking are common in the market. If we use our series of whole-line products, we will have better promotion and docking. Our whole-line products will be more flexible. No matter which product you choose, we believe that the production line will have a certain improvement, including the product qualification rate.

The following are 9 characteristics of our printing press:

1. Precision guide rail and imported motor are used to drive the tool holder for conversion and printing with high precision.
2. The printing scraper can be rotated 45 degrees and fixed, which is convenient for cleaning and replacing the printing template and scraper.
3. The block can be adjusted before and after the blade to select the appropriate printing position.
4. Combined with the fixed groove printing press plate and PIN, it is convenient to install and adjust, suitable for single-sided and double-sided printing.
5.School Edition moves the steel screen in combination with printing (PCB), x, y, z. Easy fine tuning.
6. One-way, two-way and multiple printing modes can be set.
7. With automatic counting function, it is convenient to generate output statistics.
8. Adjustable blade angle, steel blade and rubber scraper are applicable.
9. The touch screen has a screen protection function, and the time can be adjusted to protect the service life of the touch screen.

Buffer Conveyor
ly-1200

Loader
ly-250g-u

Unloader
ly-250g-d

——You Need To Know The Advantages Of Our Peripheral Equipment——

Buffer Conveyor
ly-1200

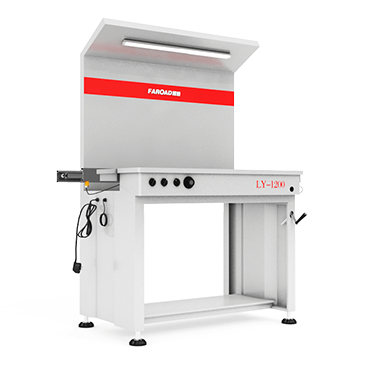

Faroad LY-1200  Connecting device

LY-1200 is an SMT production line connection device developed by Faroad Company. It uses high-quality speed regulating power system and double stepping motor transmission device. The transmission direction can be selected by itself. It has built-in intelligent chip board and the width of guide rail can be adjusted by itself. Using our connection device, you can freely communicate with various SMT production line equipment, making your production line run more smoothly.

Loader
ly-250g-u

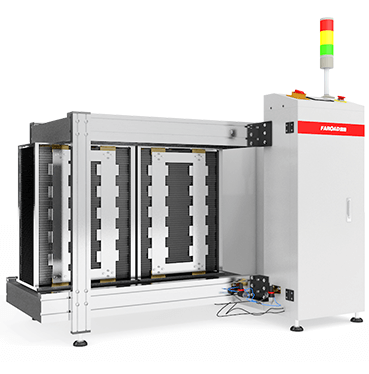

Faroad LY-250G-U Loader

LY-250G-U is an upper plate equipment developed and produced by Faroad Company. It uses special aluminum profile guide rails and special bird-shaped plastic chains. 90W brake motors are driven by ball screw to make Magazine step up and down. The transmission motor adopts 15W constant speed machine motor and pneumatic clamp structure.

Mitsubishi PLC programmable controller control, pneumatic components, control panel for display control true color touch screen.

Unloader
ly-250g-d

Faroad LY-1200  Connecting device

LY-1200 is an SMT production line connection device developed by Faroad Company. It uses high-quality speed regulating power system and double stepping motor transmission device. The transmission direction can be selected by itself. It has built-in intelligent chip board and the width of guide rail can be adjusted by itself. Using our connection device, you can freely communicate with various SMT production line equipment, making your production line run more smoothly.

Faroad LY-250G-U Loader

LY-250G-U is an upper plate equipment developed and produced by Faroad Company. It uses special aluminum profile guide rails and special bird-shaped plastic chains. 90W brake motors are driven by ball screw to make Magazine step up and down. The transmission motor adopts 15W constant speed machine motor and pneumatic clamp structure.

Mitsubishi PLC programmable controller control, pneumatic components, control panel for display control true color touch screen.

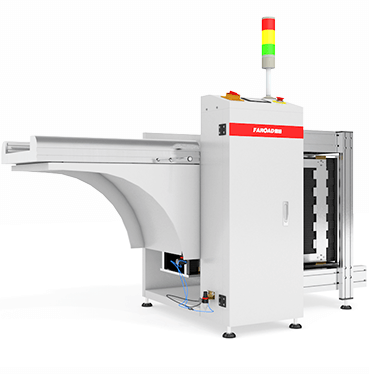

Faroad LY-250G-D  Unloader

LY-250G-D is the lower plate equipment developed and produced by Faroad company. it uses special aluminum guide rails and special bird-shaped plastic chains. The 90W production brake motor is driven by a ball screw to make Magazine step up and down. The transmission motor is a 15W fixed-speed production motor, with a pneumatic clamp structure, controlled by Mitsubishi PLC programmable controller, pneumatic components, and the control panel is a display control true color touch screen.

Faroad LY-250G-D  Unloader

LY-250G-D is the lower plate equipment developed and produced by Faroad company. it uses special aluminum guide rails and special bird-shaped plastic chains. The 90W production brake motor is driven by a ball screw to make Magazine step up and down. The transmission motor is a 15W fixed-speed production motor, with a pneumatic clamp structure, controlled by Mitsubishi PLC programmable controller, pneumatic components, and the control panel is a display control true color touch screen.

——You Need To Know The Advantages Of Our Peripheral Equipment——

Use our SMT reflow oven to achieve the highest performance at the lowest cost, Faroad is one of China’s leading SMT manufacturers. It provides reflow ovens with reasonable prices for different customers. For example, HUAWEI, one of the world’s top 500 companies, is our important partner.

Whether you are an engineer, amateur, enterprise or start-up, our solder reflow oven will optimize your assembly line from all angles. Generally, compared with manual SMD soldering, reflow soldering furnace does soldering much faster, which is why Faroad will help you expand your business and invest in your budget intelligently without damaging PCB, reducing the defective rate of products and increasing the yield. Since our reflow oven can be configured with up to ten temperature zones, high density PCB with multiple surface mount units is no longer a problem. You may want to choose “oven” instead of professional reflow soldering, but you no longer need to make compromises. Using Faroad reflow soldering, you will make your product line easier, and you will save more resources and time, thus the product line output is increasing.

Use our SMT reflow oven to achieve the highest performance at the lowest cost, Faroad is one of China’s leading SMT manufacturers. It provides reflow ovens with reasonable prices for different customers. For example, HUAWEI, one of the world’s top 500 companies, is our important partner.

Whether you are an engineer, amateur, enterprise or start-up, our solder reflow oven will optimize your assembly line from all angles. Generally, compared with manual SMD soldering, reflow soldering furnace does soldering much faster, which is why Faroad will help you expand your business and invest in your budget intelligently without damaging PCB, reducing the defective rate of products and increasing the yield. Since our reflow oven can be configured with up to ten temperature zones, high density PCB with multiple surface mount units is no longer a problem. You may want to choose “oven” instead of professional reflow soldering, but you no longer need to make compromises. Using Faroad reflow soldering, you will make your product line easier, and you will save more resources and time, thus the product line output is increasing.
