CPM-IIT Lens Pick And Place Machine

Basic Info

Model: CPM-IIT
Type: Lens
Spindle Qty: 8
Feeder Qty:
Bowl Feeder + 16 / 48 (8mm Slot)

Placement Speed: 2,2000 CPH
Applicable Component:
0201~36mm IC (0.4mm Lead Pitch)

CPM-IIT Lens Pick And Place Machine

Basic Info

Model: CPM-IIT
Type: Lens

Spindle Qty: 8
Feeder Qty:
Bowl Feeder + 16 / 48 (8mm Slot)
Placement Speed: 2,2000 CPH
Applicable Component:
0201~36mm IC (0.4mm Lead Pitch)

Parammeter Specification

Parammeter Specification

Placement Speed22,000 CPH
Grating Resolution5um
Repeat Accuracy±0.04mm
Lens Size5~30mm
Board SizeMinimum 50mmx50mm
Maximum 510mmx460mm
Board Thickness 0.8mm~3.0mm
Board Weight0.68Kg Below
PCB Transmission MechanismThree Phrases
Track Length1980mm
Nozzle Quantity8
Feeder CapacityBowl Feeder + 16 / 48 Slots
Feeder Specification8mm~56mm
Applicable componentFrom The Tiny Chip Of 0201 To The Large Component Of 36mm With Various Of Resistors And Capacitors,IC, BGA, LED Lens, LED Board.
Plywood WaySide-on, Top and Bottom
AlignmentScanning For Centering
Power AC380V
Air Source0.5~0.8Mpa
Control System Windows 7 Control Platform Of The Chinese and English Interface
Machine SizeL1380mmxW2350mmxH550mm
Weight1850Kg
Placement Speed22,000 CPH
Grating Resolution5um
Repeat Accuracy±0.04mm
Lens Size5~30mm
Board SizeMinimum 50mmx50mm
Maximum 510mmx460mm
Board Thickness 0.8mm~3.0mm
Board Weight0.68Kg Below
PCB Transmission MechanismThree Phrases
Track Length1980mm
Nozzle Quantity8
Feeder CapacityBowl Feeder + 16 / 48 Slots
Feeder Specification8mm~56mm
Applicable componentFrom The Tiny Chip Of 0201 To The Large Component Of 36mm With Various Of Resistors And Capacitors,IC, BGA, LED Lens, LED Board.
Plywood WaySide-on, Top and Bottom
AlignmentScanning For Centering
Power AC380V
Air Source0.5~0.8Mpa
Control System Windows 7 Control Platform Of The Chinese and English Interface
Machine SizeL1380mmxW2350mmxH550mm
Weight1850Kg

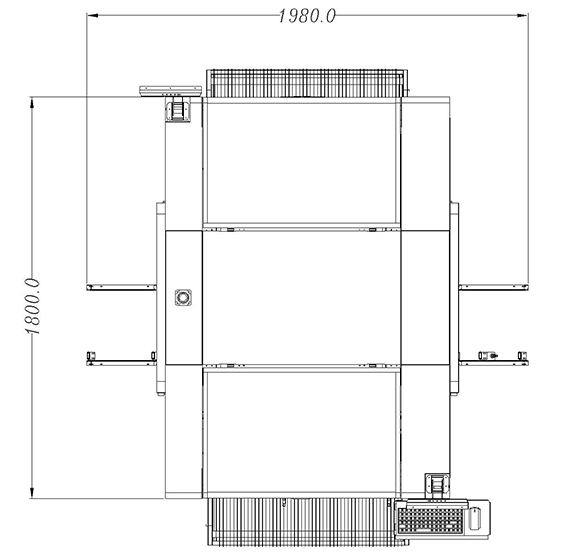

Machine Diagram

Machine Diagram

Illustration

Illustration

Machine Video
