Economic Six Zones Reflow Soldering Oven
Basic Info
Model: LY-8800II
Type: Eight Zones
Spindle Qty: 16
Feeder Qty: 76 or 152(Option)
Placement Speed: 50,000 CPH
Applicable Component:
0201~36mm IC (0.4mm Lead Pitch)
Parammeter Specification
Parammeter Specification
| Parameter specification | |
|---|---|
| Placement Speed | 65000 cph |
| Servo Resolution | 10 um |
| Placement Accuracy | ±0.04 mm |
| Track Length | 2360 mm |
| Board Size | Minimum 50mmx50mm Maximum 450mmx450mm |
| Board Thickness | 0.4 mm~3.0 mm |
| Board Weight | 0.68Kg Below |
| PCB Transmission mechanism | Three Phrases |
| Component Type | 76 Categories(Maximum/Converted To 8mm Volume) |
| Nozzle Quality | 16 |
| Feeder Capacity | 76 Stations |
| Feeder Specification | 8mm~56mm |
| Applicable component | From The Tiny Chip Of 0201 To The Large Component Of 30mm With Various Of Resistors And Capacitors,IC etc. |
| Plywood Way | Side-on,Top and Bottom |
| Alignment | Scanning for centering |
| Power | AC380V |
| Air Source | 0.5~0.8Mpa |
| Control system | Windows7 Control Platform of the Chinese and English Interface |
| Machine Size | L2450mmxW1800mmxH1550mm |
| Weight | 2850Kg |
| Parameter specification | |
|---|---|
| Placement Speed | 65000 cph |
| Servo Resolution | 10 um |
| Placement Accuracy | ±0.04 mm |
| Track Length | 2360 mm |
| Board Size | Minimum 50mmx50mm Maximum 450mmx450mm |
| Board Thickness | 0.4 mm~3.0 mm |
| Board Weight | 0.68Kg Below |
| PCB Transmission mechanism | Three Phrases |
| Component Type | 76 Categories(Maximum/Converted To 8mm Volume) |
| Nozzle Quality | 16 |
| Feeder Capacity | 76 Stations |
| Feeder Specification | 8mm~56mm |
| Applicable component | From The Tiny Chip Of 0201 To The Large Component Of 30mm With Various Of Resistors And Capacitors,IC etc. |
| Plywood Way | Side-on,Top and Bottom |
| Alignment | Scanning for centering |
| Power | AC380V |
| Air Source | 0.5~0.8Mpa |
| Control system | Windows7 Control Platform of the Chinese and English Interface |
| Machine Size | L2450mmxW1800mmxH1550mm |
| Weight | 2850Kg |

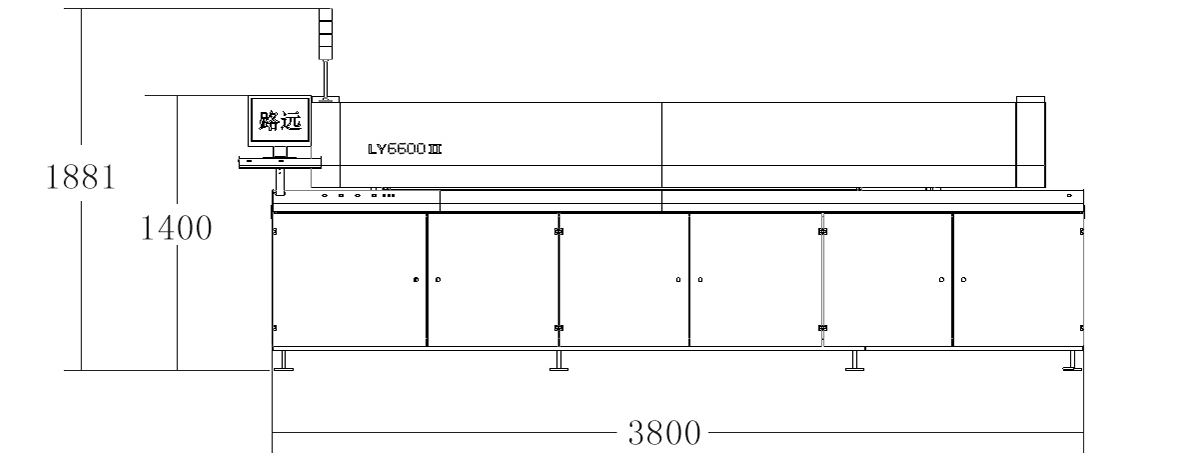

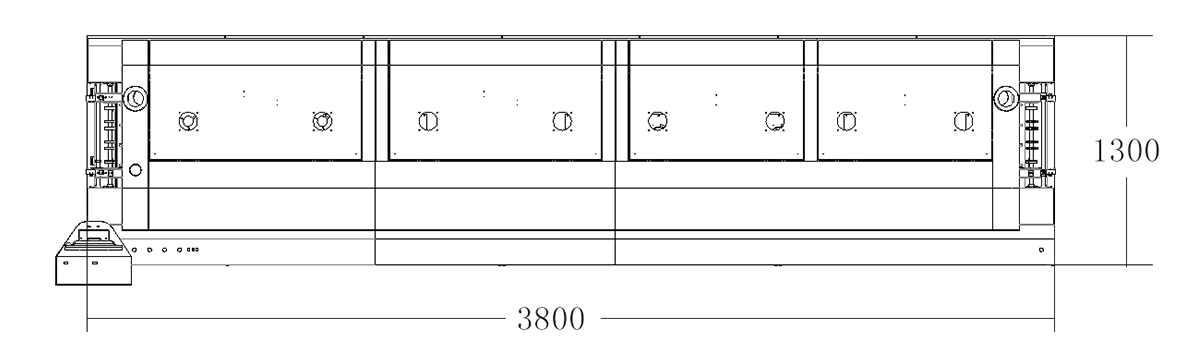

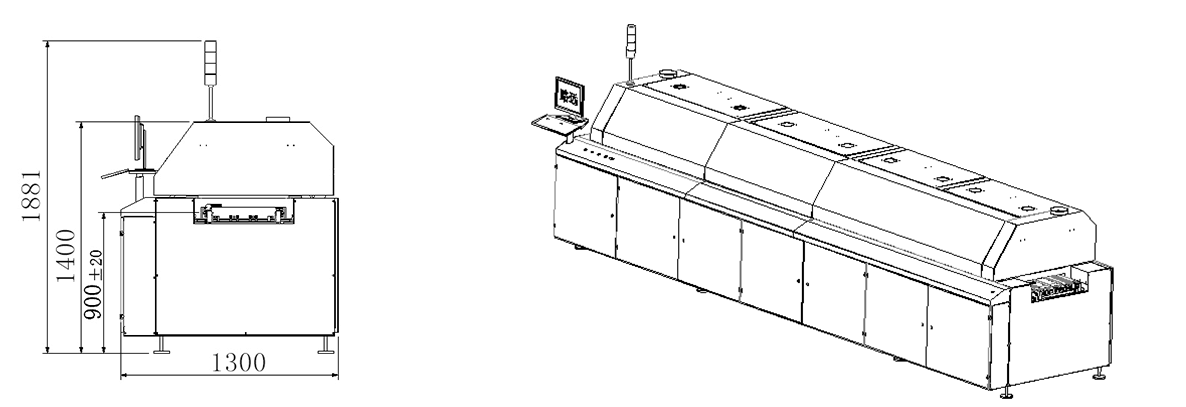

Machine Diagram
